Clausion Connector

This topic explains how to set up the Clausion connector, which enables access to Clausion’s services such as financial consolidation and business planning systems.

Set Up Clausion Connector

To set up the Clausion connector:

1. Navigate to Connections and select Create Connection.
2. Select Other from the Data Sources drop-down menu.
3. Select Clausion from the Connection Type drop-down menu.

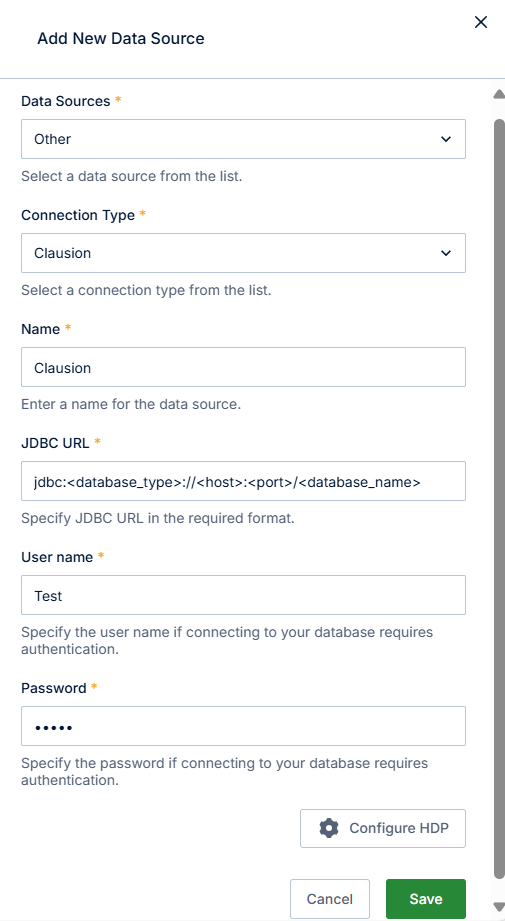

4. Provide the following information in the respective fields:

   Field	Description
   Name	Enter a name for the data source. This name will be used when creating business views.
   JDBC URL	Specify the JDBC URL required to connect to the data source (MS SQL database type).
   User name	Enter the username if database access requires authentication.
   Password	Enter the corresponding password for authentication.



5. Select Configure HDP. This setting allows you to configure Hybrid Data Pipeline (HDP) options directly, without needing to access the HDP web interface. HDP enables connectivity to your data source.
6. Provide the following information in the Configure HDP connection pop-up:

   Field	Description
   HDP Server URL	Specify the URL of the HDP server.
   HDP Port	Enter the port number used to connect to the HDP server.
   HDP Username	Enter the username for authenticating with the HDP server.
   HDP Password	Enter the corresponding password for authentication.

7. Click Next.



8. Once done, click Save. Angles will automatically verify the connection before saving the configuration.
